Front Struts on a Dragster?
 Login/Join

DRR Sportsman
posted
What is the purpose of these cars?

Has anyone ran one? Do they handle differently? Does the chassis work better under power?

Just interesting.

Posts: 664 | Location: UTD | Registered: September 25, 2019Reply With QuoteReport This Post
DRR Trophy
Picture of NC3x58
posted Hide Post
Only real advantage is smoother ride... That's it.


Nick Craig

1971 Camaro Split Bumper
376ci LS3

Posts: 410 | Location: Ohio | Registered: December 28, 2013Reply With QuoteReport This Post
DRR Sportsman
posted Hide Post
Would think there is a possibility of it helping keep the front wheels in the beams, but won’t speak for certain on it

Posts: 872 | Location: Georgia | Registered: May 09, 2008Reply With QuoteReport This Post
DRR Sportsman
Picture of Mike Frizie
posted Hide Post
quote:
Originally posted by racerdude2054:
Would think there is a possibility of it helping keep the front wheels in the beams, but won’t speak for certain on it


This ^^^^


Michael Frizie
ET 2471

Posts: 638 | Location: Winston, GA | Registered: April 10, 2002Reply With QuoteReport This Post
DRR Sportsman
Picture of Mike Frizie
posted Hide Post
quote:
Originally posted by NC3x58:
Only real advantage is smoother ride... That's it.


And this ^^^^ Big Grin


Michael Frizie
ET 2471

Posts: 638 | Location: Winston, GA | Registered: April 10, 2002Reply With QuoteReport This Post
DRR Sportsman
Picture of Mike Frizie
posted Hide Post
or so i hear............. Laughing Hard


Michael Frizie
ET 2471

Posts: 638 | Location: Winston, GA | Registered: April 10, 2002Reply With QuoteReport This Post
DRR Sportsman
Picture of sc4087
posted Hide Post
another way for the manufacturers to get more money out of us.


Mike Greene





Posts: 509 | Location: Burleson, TX | Registered: March 23, 2007Reply With QuoteReport This Post



DRR Top Comp
Picture of Curly1
posted Hide Post
quote:
Originally posted by sc4087:
another way for the manufacturers to get more money out of us.


And This /\ /\ /\ /\ /\


https://postimg.cc/gallery/np3zpruo/
"Dunning-Kruger Effect"
-a type of Cognitive bias where people with little expertise or ability assume they have superior expertise or ability. This overestimation occurs as a result of the fact that they do not have enough knowledge to know they don't have enough knowledge.

Before you argue with someone ask yourself, "Is this person mentally mature enough to grasp the concept of a different perspective?" If not there is no point to argue.

4X NE2 CHAMPION. 2020 TDRA NE2 Champion

Posts: 4315 | Location: United States of Texas | Registered: April 02, 2011Reply With QuoteReport This Post
DRR Trophy
posted Hide Post
Check with. Folks Race Cars One with struts and one with a diamond front end

Posts: 34 | Location: rubicn wi. | Registered: December 22, 2013Reply With QuoteReport This Post
DRR Top Comp
Picture of Curly1
posted Hide Post
Actually I am rather surprised there is not more front suspended cars. Especially the shorter ones like the LandShark would benefit from front suspension.

Like everything we do it is a Cost Vs Benefit decision.

I do think once someone wins 3 or 4 Big Money Races or National events with front suspended cars then everyone will want it just like when 4 link rears started showing up.


https://postimg.cc/gallery/np3zpruo/
"Dunning-Kruger Effect"
-a type of Cognitive bias where people with little expertise or ability assume they have superior expertise or ability. This overestimation occurs as a result of the fact that they do not have enough knowledge to know they don't have enough knowledge.

Before you argue with someone ask yourself, "Is this person mentally mature enough to grasp the concept of a different perspective?" If not there is no point to argue.

4X NE2 CHAMPION. 2020 TDRA NE2 Champion

Posts: 4315 | Location: United States of Texas | Registered: April 02, 2011Reply With QuoteReport This Post
DRR Trophy
posted Hide Post
I think there’s probably more than you think some use struts which you see other builders use like a reverse swing arm with a shock under the body then there was a builder in AZ that I remember was experimenting with the car pivots behind the driver it had a shock right behind seat and I believe engine and trans were on a swing arm of sorts

Posts: 418 | Location: Natick MA | Registered: November 15, 2017Reply With QuoteReport This Post
DRR Top Comp
Picture of Curly1
posted Hide Post
quote:
Originally posted by Top355x:
I think there’s probably more than you think some use struts which you see other builders use like a reverse swing arm with a shock under the body then there was a builder in AZ that I remember was experimenting with the car pivots behind the driver it had a shock right behind seat and I believe engine and trans were on a swing arm of sorts


Yancer did the rear pivot deal. I could see where that is a good idea because it eliminates the driveshaft and the rear end stays solid.
Dave Covey here has one and his car is pretty serious.

Yancer also was working on real front suspension for dragsters not sure how many he did. It is a rather nice looking set up.
http://tomyancerracecars.blogs...spension-system.html


https://postimg.cc/gallery/np3zpruo/
"Dunning-Kruger Effect"
-a type of Cognitive bias where people with little expertise or ability assume they have superior expertise or ability. This overestimation occurs as a result of the fact that they do not have enough knowledge to know they don't have enough knowledge.

Before you argue with someone ask yourself, "Is this person mentally mature enough to grasp the concept of a different perspective?" If not there is no point to argue.

4X NE2 CHAMPION. 2020 TDRA NE2 Champion

Posts: 4315 | Location: United States of Texas | Registered: April 02, 2011Reply With QuoteReport This Post
DRR Sportsman
posted Hide Post
We have a front suspended Diamond dragster. Only a couple of races on it so far but it seems to be working great and my son says it drives like a cadillac. It's a 248" dual suspended car of course as well. Weighs 1920 and we have been 4.50's here in Vegas with it with a BBM for power. Been 1.05 60' with a 4.10 gear. So far we are very happy with it.

Yancer built a couple front suspended cars. One even won the Winternationals and was Phil Dions. They both did well in divisional racing as well.

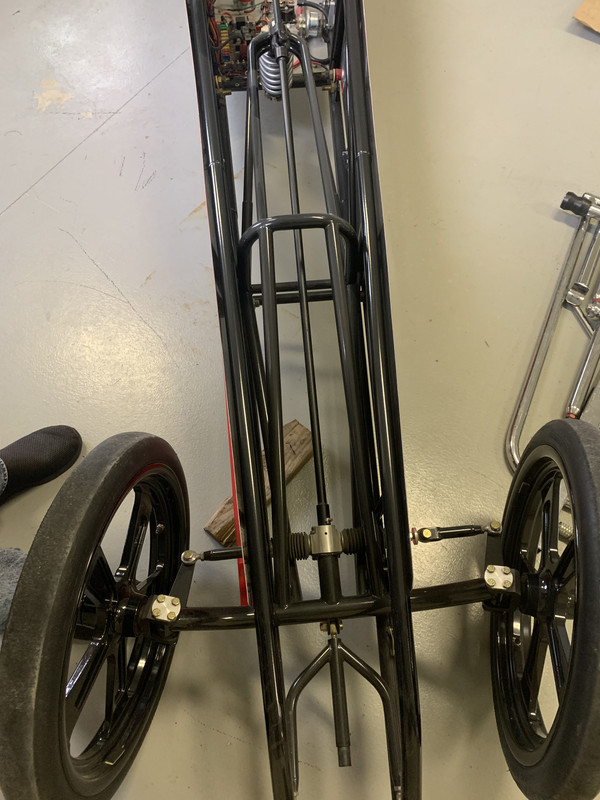

Here is a bad pic of the front suspension



"I am not ashamed to confess I am ignorant of what I do not know."
Marcus Tullius Cicero

Posts: 1028 | Location: Las Vegas, NV | Registered: April 14, 2004Reply With QuoteReport This Post
DRR Top Comp
posted Hide Post
Al, you still have that beautiful door car?


.
Dave



F J B


Posts: 4570 | Location: Earth | Registered: February 08, 2006Reply With QuoteReport This Post



DRR Sportsman
posted Hide Post
Our racetech hardtail is like a new car with the diamond front suspension on it.


Denis LeBlanc


Posts: 510 | Location: Manchester, NH | Registered: February 03, 2006Reply With QuoteReport This Post
DRR Sportsman
posted Hide Post
quote:
Originally posted by imakehp:
Al, you still have that beautiful door car?


Would depend on which car you are feferring to. Lord knows I go through them. Building/redoing a new one right now actually


"I am not ashamed to confess I am ignorant of what I do not know."
Marcus Tullius Cicero

Posts: 1028 | Location: Las Vegas, NV | Registered: April 14, 2004Reply With QuoteReport This Post
DRR S/Pro
Picture of The Bozman
posted Hide Post
i have a suspended Diamond with the front suspension and dual rear shocks. I can tell you it will be very hard for me to ever go back. The ride is super smooth, it is very calm, 1.00 60 ft and it feels like it is going 1.12. Diamond has the craftsmanship that I would have expected from all the others but I must say it is above the others. I have had 5 other dragster brands and a new one of those thrown in so I know. I have had dual rear shocks and single. This front suspension helps on the track and coming up the return road.


Keeping the Socialists and NEO-LIBERALS at bay with FACTS one post at a time !!!

Freedom isn't free !!! Thank a veteran, they will actually appreciate it.

Posts: 2498 | Location: Gilmer, Texas | Registered: June 25, 2002Reply With QuoteReport This Post
DRR Trophy
posted Hide Post
Putting front struts on a Dragster is a piece of cake. In my opinion though, narrow track and independent of each other allows more twist of the roll center. The Diamond front allows travel and adjustability without the twist. Diamond Race Cars and Adkins Race Cars have been doing the swing arm front for over 20 years. Rides super but also more important overall tuneability. Smooooooth on the hit as some one stated above.

Posts: 321 | Location: ohio | Registered: June 06, 2006Reply With QuoteReport This Post
DRR Top Comp
Picture of wideopen231
posted Hide Post
quote:
Originally posted by Top355x:
I think there’s probably more than you think some use struts which you see other builders use like a reverse swing arm with a shock under the body then there was a builder in AZ that I remember was experimenting with the car pivots behind the driver it had a shock right behind seat and I believe engine and trans were on a swing arm of sorts


My father had the idea od a rigid mounted powertrain with the body suspended back in 60's. He did not ever try it.His idea was a pivot in front of engine with engine ,trans and rearend all mounted to lower potion and the body munted to upper section with shocks front and rear. This was a doorcar design needless to say and not dragster but working on same lines.

I am giving strong consideration to doing front of FED like the diamond cars with axle mounted in frame structure that pivots and has shock mounted to control it. Don't care about comfort of ride for whole 1/4 mile but for keeping chassis from bouncing on topend when lifting.




America home of free. Brought to you by 2nd amendment.

Posts: 4533 | Location: Greensboro NC | Registered: May 24, 2011Reply With QuoteReport This Post
DRR Sportsman
posted Hide Post
The diamond front suspension alone makes it nice for driving around the pit area at some tracks. Drove a buddies car with front suspension a couple times, always felt like it was wandering around the entire pass.

Posts: 560 | Location: somewhere between been and never was | Registered: November 03, 2002Reply With QuoteReport This Post
