Bracket Talk
Team Woodfin Camaro, "Lamplighter"
March 13, 2019, 06:21 PM
Larry WoodfinTeam Woodfin Camaro, "Lamplighter"
Alston
Larry Woodfin
March 13, 2019, 06:21 PM
Larry WoodfinChris Alston
Larry Woodfin
March 13, 2019, 07:34 PM
CURTIS REEDI’ve been using one of those for probably 10 years. The only one besides that that I would consider is the Mark Williams one. The one from Chassisworks has been great.
Curtis
____________________________
2017 and 2018 Osage Casinos Tulsa Raceway Park No-Box Champion
2018 Div4 Goodguys Hammer award winner
March 20, 2019, 06:58 AM

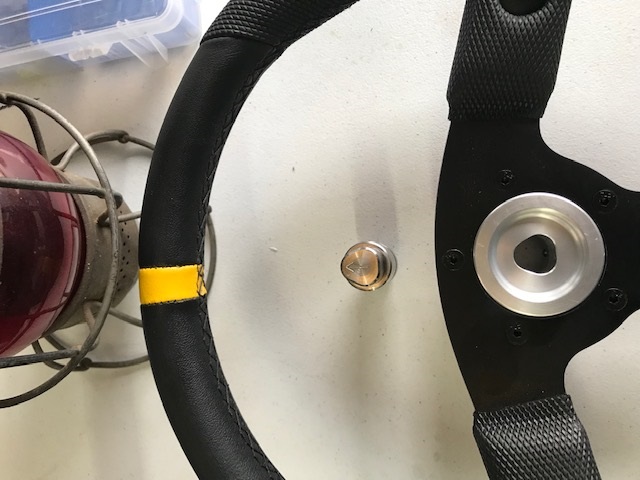

CURTIS REEDHey Larry, check out this steering wheel connector. Would be even better than the one we are using. Of course it's 3 time the cost.
You don't have to pull anything to put it on. It pops on and is tapered so there isn't any slop when it is on.
https://momo.com/en-us/product...el-quick-disconnect/
____________________________
2017 and 2018 Osage Casinos Tulsa Raceway Park No-Box Champion
2018 Div4 Goodguys Hammer award winner
March 20, 2019, 07:12 AM
NC3x58quote:
Originally posted by CURTIS REED:
Hey Larry, check out this steering wheel connector. Would be even better than the one we are using. Of course it's 3 time the cost.
You don't have to pull anything to put it on. It pops on and is tapered so there isn't any slop when it is on.
https://momo.com/en-us/product...el-quick-disconnect/
I saw this yesterday on Tim McAmis YouTube channel.. Have you seen a smaller version anywhere by chance for dragsters? That would be neat to put in my car! Have a Grant and the typical MW splined quick release now..
Nick Craig
1971 Camaro Split Bumper
376ci LS3
March 20, 2019, 07:29 AM
CURTIS REEDquote:
Originally posted by NC3x58:
quote:
Originally posted by CURTIS REED:
Hey Larry, check out this steering wheel connector. Would be even better than the one we are using. Of course it's 3 time the cost.
You don't have to pull anything to put it on. It pops on and is tapered so there isn't any slop when it is on.
https://momo.com/en-us/product...el-quick-disconnect/
I saw this yesterday on Tim McAmis YouTube channel.. Have you seen a smaller version anywhere by chance for dragsters? That would be neat to put in my car! Have a Grant and the typical MW splined quick release now..
I haven't but I'm not sure why it wouldn't work for a dragster? Just get a blank butterfly and have it drilled to match the 6 bolt pattern.
The other one that Larry posted I use and is tighter than a normal splined unit you might check it out.
____________________________
2017 and 2018 Osage Casinos Tulsa Raceway Park No-Box Champion
2018 Div4 Goodguys Hammer award winner
March 20, 2019, 08:25 AM

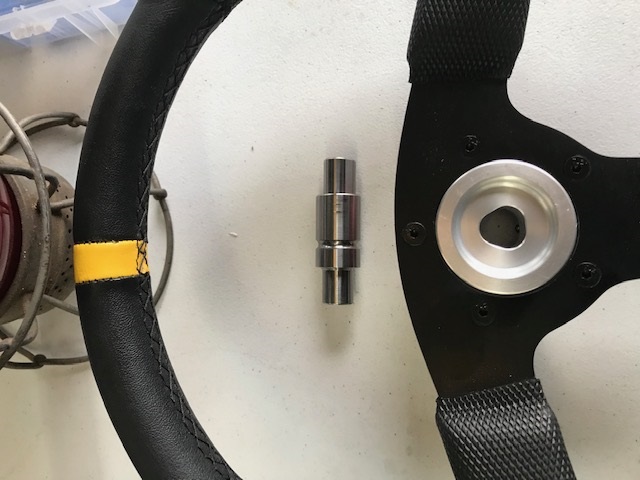

Larry WoodfinI did see the video Tim posted and agree it would be the cat's meow. However, in my mature years, I am considering cost balanced with function. The Alston piece is $100.00 instead of the one Tim shows for $400.00.
Not intending to take away anything from Tim because I think he is very sharp and builds a top-shelf car. Overall, for our sportsman builds, I think the Alston part is the best value.
Larry Woodfin
March 20, 2019, 08:57 AM
CURTIS REEDquote:
Originally posted by Larry Woodfin:
I did see the video Tim posted and agree it would be the cat's meow. However, in my mature years, I am considering cost balanced with function. The Alston piece is $100.00 instead of the one Tim shows for $400.00.
Not intending to take away anything from Tim because I think he is very sharp and builds a top-shelf car. Overall, for our sportsman builds, I think the Alston part is the best value.
No way I can argue that. LOL
____________________________
2017 and 2018 Osage Casinos Tulsa Raceway Park No-Box Champion
2018 Div4 Goodguys Hammer award winner
March 20, 2019, 09:10 AM
Larry WoodfinChanging the subject, stand by for a revolutionary change in ref trans brake button placement. You will have seen it here first.
Larry Woodfin
March 20, 2019, 05:24 PM

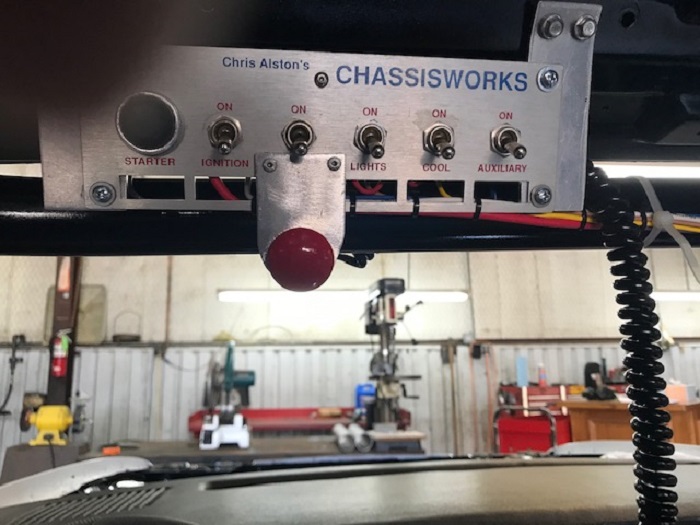

Larry WoodfinUnder the heading of "consider this with an open mind"
Next time you are seated in your race car, hold your elbow against your body and reach up to the general area shown in the photo. Hold your elbow stationary against your side and flex/swing your arm away from the switch.
I came up with this idea while brainstorming about where to mount the brake button. I have not raced it but "in the shop" it feels good.
Larry Woodfin
March 20, 2019, 05:41 PM
Larry WoodfinThe Lamplighter [3rd gen Camaro] has a low roof so this mounting may not work on some body styles.
Larry Woodfin
March 21, 2019, 06:55 AM
CURTIS REEDYou have the right idea about only one muscle group moving your arm. JMO though the best place is when you can hold your arm to your side so your elbow is actually in contact with your body, the weight of your arm is triggering your switch and you pull away with only your bicep.
Take my 2 cents for what it's worth because I'm a lowly foot braker now though. LOL
____________________________
2017 and 2018 Osage Casinos Tulsa Raceway Park No-Box Champion
2018 Div4 Goodguys Hammer award winner
March 21, 2019, 10:34 AM
NC3x58quote:
Originally posted by Larry Woodfin:
Under the heading of "consider this with an open mind"
Next time you are seated in your race car, hold your elbow against your body and reach up to the general area shown in the photo. Hold your elbow stationary against your side and flex/swing your arm away from the switch.
I came up with this idea while brainstorming about where to mount the brake button. I have not raced it but "in the shop" it feels good.
I have seen this done by a bunch of Bottom bulbers and their long-throw buttons.. A couple of them I have talked to say the same thing that it's very consistent on the let go that way.
Nick Craig
1971 Camaro Split Bumper
376ci LS3
March 21, 2019, 04:56 PM
EmanIs that switch panel supposed to have fuses across the bottom row?
March 21, 2019, 06:27 PM
Larry Woodfineman, it was fused but I eliminated them and substituted the relay board fuses for protection. The main power feed up to switch panel is fused as are all the component feeds from the relay board.
That Alston panel has been on the "someday" shelf for about 20 years and this was a good opportunity to employ it. Also, the labeling is not correct because I have customized the functions. I will do some type of stick-on updated labels.
Larry Woodfin
March 23, 2019, 08:12 PM
Larry WoodfinLamplighter
Larry Woodfin
May 04, 2019, 03:17 PM
Larry Woodfinprogress
Larry Woodfin
May 04, 2019, 03:18 PM
Larry Woodfindash work
Larry Woodfin
May 04, 2019, 03:26 PM

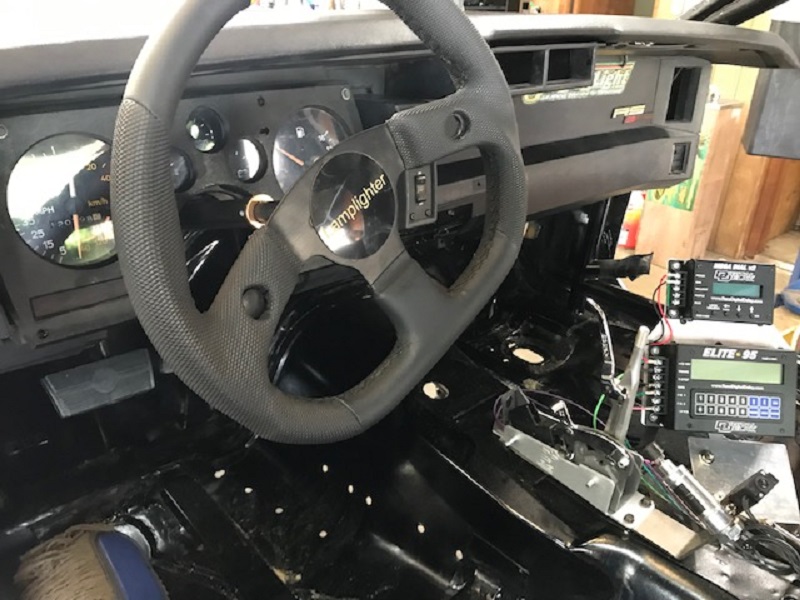

Larry WoodfinIt has been a few weeks so here are some catch-up notes.
^The wiring and component mounting is well along, I estimate 80% completed.

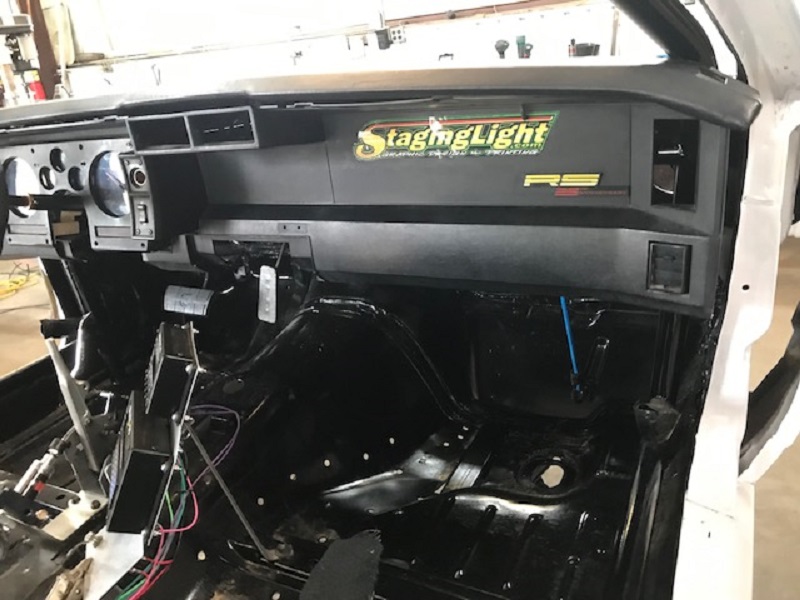

^The dash is just an empty, gutted housing as well as the cluster. It's only a few pounds more than a generic aluminum dash and I like the "factory" look. It adds some detail to the interior.
^The wheel tubs are on the short "to do" list as well as other sheet metal details.
^You will notice the lightweight column and wheel disconnect are completed.
More soon.
Larry Woodfin
May 04, 2019, 06:07 PM
WooleyGood to see updates. Really likeing this build.
