Bracket Talk
Team Woodfin Camaro, "Lamplighter"

This topic can be found at:
https://drr.infopop.cc/eve/forums/a/tpc/f/80760912/m/9447054286

December 11, 2018, 06:09 PM
Larry Woodfin
Team Woodfin Camaro, "Lamplighter"

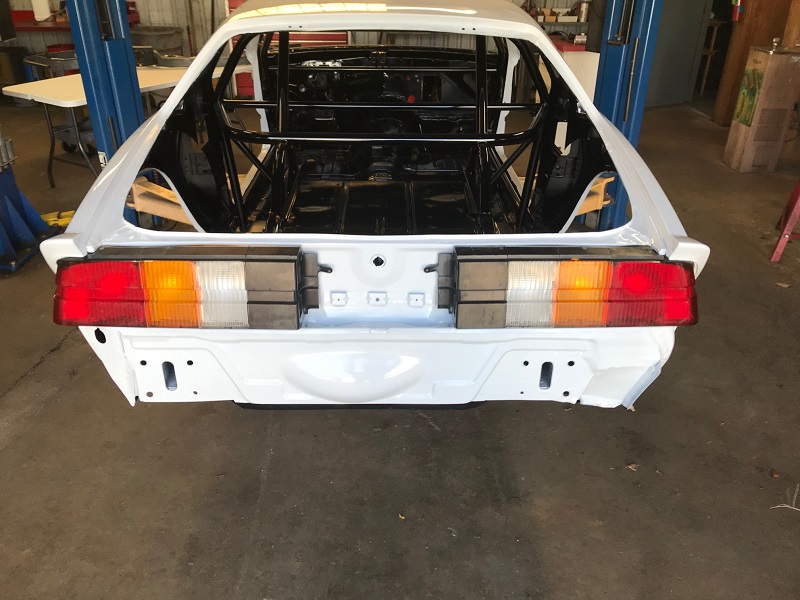

first part reinstalled, taillight
I call it "Lamplighter"
think;
*win light
*illumination
*education
*guide




Larry Woodfin



December 11, 2018, 06:15 PM
J178RED
Looking good...


HAVE THEY CALLED US YET ? THEY HAVE!!!
December 11, 2018, 07:50 PM
markemark
Larry, is this your build to race/ re-sell or for someone else?

Very nice. I like white. How about cutting to the chase and list the Engine /trans/ 3rd member specifics if known?
December 11, 2018, 08:20 PM
Larry Woodfin
This is my personal, top bulb racer. It will weight around 2800 pounds with the driver and 1/8 mile et range of 5.80's The steps and parts between now and completing are a work in process.

Some things are committed, SBC, 9" rear, four-link, 32 x 14 tire, methanol. Beyond these details, it is a clean drawing board.


Larry Woodfin



December 11, 2018, 08:28 PM
markemark
Thank You Larry. You have my complete attention. You have to promise to post all the end results after tuning and at the track.

Wink
December 12, 2018, 02:02 AM
Honkytonk HERO
Cool, looking forward to another build. You illustrate with photos really well. Most enjoyable. Hope to see you at Extreme, I should be in the dragster and my son in the wagon.
December 12, 2018, 08:11 AM
Larry Woodfin
This build will be an exercise in patience for me because each and every piece that goes on will be painted, polished, detailed, whatever. Yet, as always with my builds, a sharp eye on cost vs return. Example, the taillight lens are not perfect and in a perfect world, they would be new. However, in your spare time, surf the web and price third-gen Camaro taillight lens and get back to me.

The cost of the new taillight lens can be much better used in an area related to performance.


Larry Woodfin



December 12, 2018, 08:15 AM
Larry Woodfin
Also, this build will be an exercise in weight removal yet retaining a clean, professional look. I am working on the headlight housing bar and related mounting and expect that assemble will weigh about 6 pounds less when modified.


Larry Woodfin



December 12, 2018, 08:49 AM
markemark
Are you planning to use the stock steel doors or is that unknown as of now?
December 12, 2018, 09:01 AM
Larry Woodfin
I do plan to incorporate the factory doors with power windows. Team member Monte has performed considerable weight removal surgery on them.


Larry Woodfin



December 12, 2018, 06:19 PM
Larry Woodfin

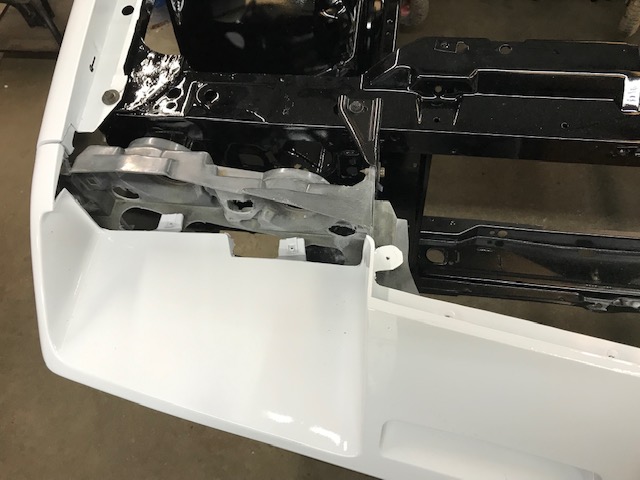

The gray colored piece is the factory fiberglass fixture that contains the headlights and support for the front bumper fascia. The EO headlights are glass, so by replacing those with plastic lights and some whittling on the fiberglass support, and completely removing the front bumper that is inside the fascia, we have removed 18 pounds.

By utilizing such weight removal details through the car, drilling, cutting, removing excess materials here and there, a considerable weight removal will be realized.

This fitment check will be torn down back down for painting then reinstalled.




Larry Woodfin



December 12, 2018, 06:21 PM
Larry Woodfin

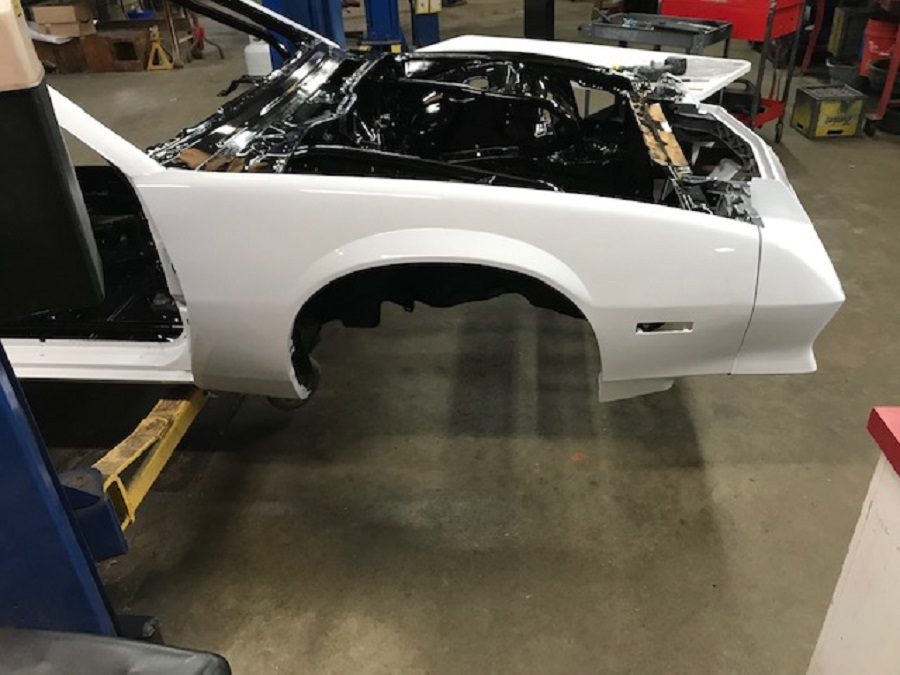

a check of the front fascia and fender fit




Larry Woodfin



December 13, 2018, 01:01 AM
J178RED
Larry keep that weight right above 2800! It looks like the great making of a Super Street car. Running on a stop is a great time, just adds one more challenge to the mix....


HAVE THEY CALLED US YET ? THEY HAVE!!!
December 13, 2018, 07:14 AM
Larry Woodfin
Super Street is an option, plus the Southwest Heritage series now allows up to 1982 models.


Larry Woodfin



December 13, 2018, 07:39 AM
SuperPro54
looking good.
December 13, 2018, 08:38 AM
The Bozman
As usual the attention to detail is what makes Larry's builds so impressive. He has been an attention to detail person with everything he builds whether it is race cars, race engines or supporting his automotive shop's customers.


Keeping the Socialists and NEO-LIBERALS at bay with FACTS one post at a time !!!

Freedom isn't free !!! Thank a veteran, they will actually appreciate it.
December 13, 2018, 09:48 AM
Eman
Where did you find those nice taillights? I need a left one like that.
December 13, 2018, 11:04 AM
Mike Beck
Support that front urethane with some sort of tubing. My 1988 Firebird has no front bumper and about around the 1000ft the urethane caves-in a lot! In the 1/8 you might be fine. I go 135 in the 1/4, so maybe around 120 it pops in. Have some cool shots of that somewhere from a fellow racer. Cracks the darn paint. Frown
December 13, 2018, 01:09 PM
Canted Valve
quote:
Support that front urethane with some sort of tubing.

That was the first thought that popped into my mind, wondered if it would have enough integrity.


Illegitimi non carborundum
December 13, 2018, 01:44 PM
Larry Woodfin
Yes, the fascia needs support without the bumper in place. I will post pics soon.


Larry Woodfin
